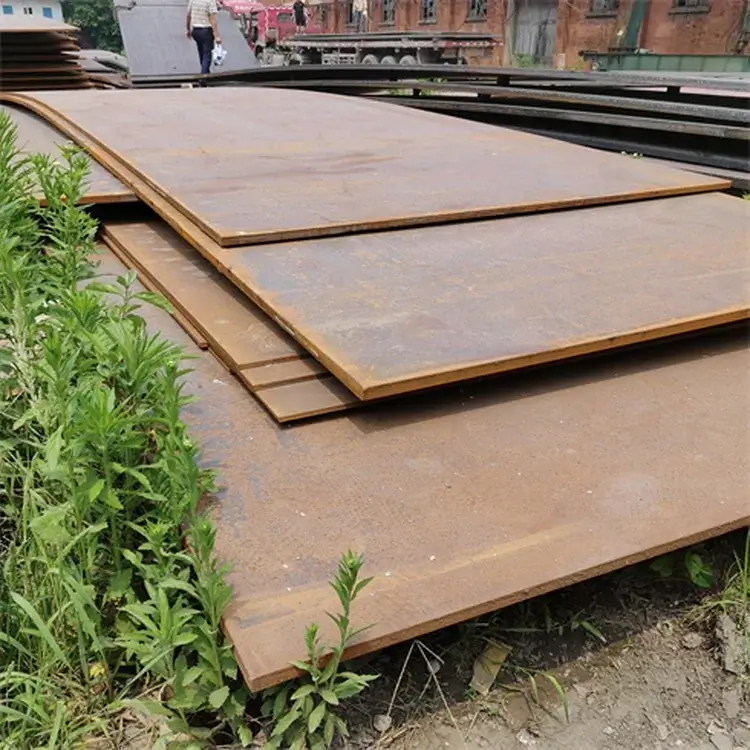

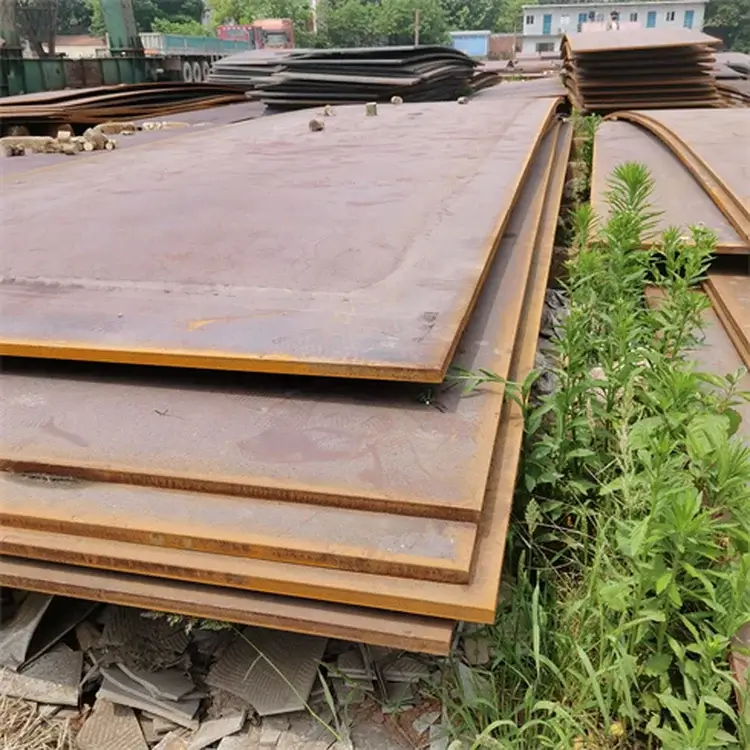

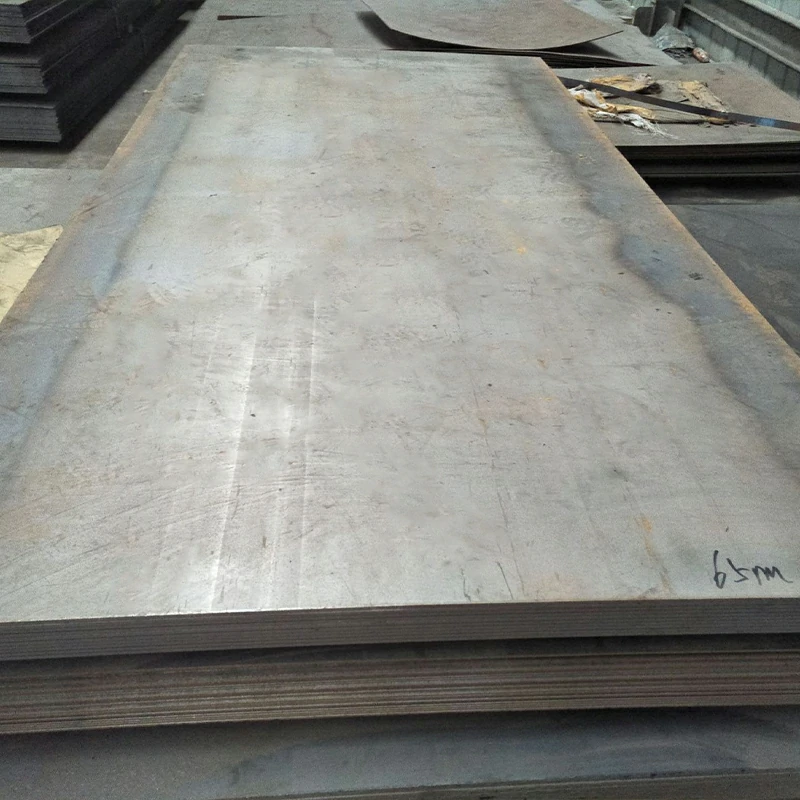

EN 10083-3 4135/4140/4142/6150 Alloy Structural Steel Plate
EN 10083-3:2006 steel is an alloy steel used for quenching and tempering. This standard regulates the technical delivery conditions of alloy steels. Under the steel 50CrMo4, 51CrV4, 20MnB5, 34CrMo4, 42CrMo4, 27MnCrB5-2. EN 10083-3 steel plate has high strength, high toughness and good hardenability. The alloy requires high temperature preheating before welding to eliminate the stress after welding.
Keywords:





Description
EN 10083-3 4135/4140/4142/6150 Alloy Structural Steel Plate Description
GB/T 11251 alloy steel is one of the common hot-rolled alloy structural steel plates. GB/T 11251 Hot rolled plate has high strength and wear resistance, high hardenability, moderate cold deformation plasticity, good cutting performance and good welding performance. During the heat treatment, the toughness of the steel decreases less. GB/T 11251 alloy steel can still maintain high toughness under water cooling conditions, but it has a tendency of overheating sensitivity, white spot sensitivity and temper brittleness.
Product Parameters
Product | EN 10083-3 4135/4140/4142/6150 Alloy Structural Steel Plate | |
Executive | Chinese | GB/1591-2018,GB713-1997,GB3274-88,GB/T16270-2009.ect |
American | ASTM A36, ASTM A283 Grade A, B,C,ASTM A516, ASTM A537, ASTMA573,ASTM A572,ASTM A737.ect | |
Europe | EN10025,EN10083-2,DIN17100.ect | |
Japanese | JIS G3101, JIS G3106,JIS G4051, BS4360,BS 1501-161/151-430a.ect | |
Russia | GOST 8787-68,GOST14637-89.ect | |
Technique | Cold rolled; Hot rolled; Hot forming; Cold forming; Heat treatment; | |
Added | Machinability; Welding; Cutting; Perforating; Bending; Punching; Hot dip galvanized, | |
Thickness | 0.3-4mm cold rolled;3-300mm hot rolled;Customization according to customers'requirements | |
Width | 600mm,1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm | |
Length | 2000mm,2438mm,3000mm,5800mm,6000mmCustomization according to customers'requirements | |
Packing | Waterproof paper/ Wooden Pallet / Wooden box / Plastic Cloth Wraps / lron steel stripetc | |
Application | Mild steel ls commonly used structurally in buildings and bridges, axles, | |
Product Parameters
Product Name | EN 10083-3 4135/4140/4142/6150 Alloy Structural Steel Plate |
Production Process | Hot Rolling, Cold Rolling |
Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
Width | 100mm-3000mm |
Length | 1m-12m, or Customized Size |
Thickness | 0.1mm-400mm |
Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
A633 | C | Mn | P | S | Si | V | Nb |
GradeA | ≤ 0.18 | 1.00-0.35 | 0.035 | 0.04 | 0.15-0.50 | - | ≤ 0.05 |
GradeC | ≤ 0.20 | 0.15-0.50 | 0.035 | 0.04 | 0.15-0.50 | - | 0.01-0.05 |
GradeD | ≤ 0.20 | 0.70-1.35 | 0.035 | 0.04 | 0.15-0.50 | - | - |
GradeE | ≤ 0.22 | 1.15-1.50 | 0.035 | 0.04 | 0.15-0.50 | 0.04-0.11 | - |
Mechanical Properties
A633 | Yield Strength | Tensile Strength | Elongation 200mm, min% | Elongation 50mm, min% | ||||
65mm | 65-100mm | 100-150mm | 65mm | 65-100mm | 100-150mm | |||
Grade A | 290 | 290 | - | 430-570 | 430-570 | - | 18 | 23 |
Grade C&D | 345 | 315 | - | 485-620 | 450-590 | - | 18 | 23 |
Grade E | 415 | 415 | 380 | 550-690 | 550-690 | 515-655 | 18 | 23 |
Physical Performance
Physical Performance | Metric | Imperial |
Density | 7.75g/cc | 0.280 lb/in³ |
Product Specifications
Specifications(mm) | Thickness(mm) |
1260*2440 | 1.5 |
1260*2440 | 2. 0 |
1260*6000 | 1.8 |
1260*6000 | 2. 0 |
1260*6000 | 2. 5 |
1260*6000 | 2. 75 |
1260*6000 | 2. 95 |
1260*6000 | 3. 5 |
1260*6000 | 3. 75 |
1260*6000 | 3. 95 |
1260*6000 | 4. 5 |
1260*6000 | 4. 75 |
1260*6000 | 4. 95 |
1260*6000 | 5. 5 |
1260*6000 | 5. 75 |
1260*6000 | 5. 75 |
1510*6000 | 8. 0 |
1510*6000 | 10 |
1510*6000 | 12 |
1510*6000 | 15 |
The above are the general items, for the special types, we can also meet your needs. |
Product Details | Product Production | Product Warehouse |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
Applications
In the field of construction, it is used to manufacture structural support materials, such as beams, columns, bridges, building skeletons and high-rise buildings; in the field of machinery manufacturing, it is used to manufacture various machine tools, punches, presses, loaders and other mechanical equipment; in automobiles, It is used in the shipbuilding industry to manufacture various components, such as chassis, shell, deck, etc.
Project Cases
Additional Processing Technology
Carbon steel plates can be treated with additional processes such as cutting, welding, drilling, labeling, oiling, and beveling.
Product Packaging
Product Transportation
China | America | Germany | Japan | France | Britain | International |
GB3077 | AlSI | DIN | JIS | NE | BS | ISO |
20Mn2 | 1320 1221 | 20Mn5 | SMn21 | 20M5 | 150M19 | - |
30Mn2 | 1330 | 30Mn5 | SMn24 | 32M5 | 150M28 | - |
35Mn2 | 1335 | 36Mn5 | SMnl | 35M5 | 150M36 | - |
40Mn2 | 1340 1341 | - | SMn2 | 40M5 | - | - |
45Mn2 | 1345 | 46Mn7 | SMn3 | 45M5 | - | - |
50Mn2 | 1052 | 50Mn7 | - | 55M5 | - | - |
20MnV | - | 20MnV6 | - | - | - | |
30Mn2MoW | - | -- | - | - | - | |
27SiMn | - | 27MnSi5 | - | - | - | |
35SiMn | - | 37MnSi5 | - | 38MS5 | - | - |
42SiMn | - | 38MnSi4 46MnSi4 | - | 38MS5 | - | - |
20SiMn2MoV | - | - | - | - | - | - |
25SiMn2MoV | - | - | - | - | - | - |
37SiMn2MoV | - | - | - | - | - | - |
40B | 14B35 | 35B2 | - | - | - | - |
45B | 50B46H | 45B2 | - | - | - | - |
50B | 14B50 | - | - | - | - | - |
4OM∏B | 15B41 | - | - | - | - | - |
45MnB | 15B48 50B44 | - | - | - | - | - |
20Mn2B | - | - | - | - | - | - |
20MnMoB | 80B20 | - | - | - | - | - |
15MnVB | - | - | - | - | - | - |
- | - | - | - | - | - | - |
- | - | - | - | - | - | - |
20MnVB | - | - | - | - | - | - |
40MnVB | - | - | - | - | - | - |
20MnTiB | - | - | - | - | - | - |
25MnTiBRE | - | - | - | - | - | - |
2OSiMnVB | - | - | - | - | - | - |
15Cr | 5015 5115 | 15Cr3 | SCr21 | 12C3 | 523A14 523M15 | - |
15CrA | - | - | - | - | - | - |
20Cr | 5120 | 20Cr4 | SCr22 | 18C3 18C4 | 527A19 527M20 | 683/11 20Cr4 20CrS4 |
30Cr | 5130 | 28Cr4 | SCr2 | 28C4 32C4 | 530A30 530A32 | - |
35Cr | 5135 | 34Cr4 37Cr4 | SCr3 | 38C4 | 530A36 | 683/8 3、 3a、 3b |
40Cr | 5140 | 38Cr4 41Cr4 | SCr4 | 42C4 | 530A40 530M40 | 683/1 4、 4a^ 4b |
45Cr | 5145 | 42Cr4 | SCR5 | 45C4 | - | - |
50Cr | 5150 5152 | - | - | 50C4 | En48 | - |
38CrSi | - | - | - | - | - | - |
12CrMo | 4119 | 13CrMo44 | - | 12CD4 15CD2 | - | - |
15CrMo | ASTM A-387Gr. B | 15CrMo5 16CrMo44 | SCM21 | 15CD4. 05 | BS1653 | - |
20CrMo | 4118 | 20CrMo5 22CrMo4 | SCM22 | 18CD4 20CD4 | CDS 12 CDSllO | - |
30CrMo | 4130 | 25CrMo4 | SCM2 | 30CD4 | CDS 13 | - |
30CrMoA | - | 32CrMol2 3ICRMo12 | - | - | - | - |
35CrMo | 4135 4137 | 34CrMo4 35CrMo4 | SCM3 | 35CD4 | 78A37 | 683/1 C35ea C35eb |
42CrMo | 4140 4142 | 41CrMo4 42CrMo4 | SCM4 | 40CD4 42CD4 | 708M40 708A42 709M40 | 683/1 3 |
12CrMoV | - | - | - | - | - | - |
35CrMoV | - | 35CrMoV5 | - | - | - | - |
12CrlMoV | - | 13CrMoV4.2 | - | - | - | - |
25Cr2MoVA | - | 24CrMoV5.5 | - | - | - | - |
25Cr2MolVA | - | - | - | - | - | - |
20CR3MoWVA | - | 21CrVMoW12 | - | - | - | - |
38CrMoΛl | 6370 (ΛMS) | 34CrAlMo5 41CrAlMo7 | SACM645 | 40CAD6.12 | 905M39 | 683/10 41CrAlMo74 |
20CrV | 6120 | 22CrV4 | - | 22CrV4 | - | - |
40CrV | 6140 | 42CrV | - | 42CrV4 | - | - |
50CrVA | 6150 | 50CrV4 | SUPlO | 50CV4 | 735A50 | - |
15CrMn | - | 16MnCr5 | - | 16MC5 | - | - |
20CrMn | 5120 | 20MnCr5 | SMC21 | 20MC5 | - | - |
40CrMn | 5140 | - | SMC3 | - | - | - |
20CrMnSi | - | - | - | - | - | |
25CrMnSi | - | - | SMKl | - | - | - |
30CrMnSi | - | - | - | - | - | - |
30CrMnSiA | - | - | - | - | - | - |
35CrMnSiA | - | - | SMK2 | - | - | - |
20CrMnMo | 4119 | 20CrMo5 | SCM23 | - | - | - |
40CrMnMo | 4140 | - | - | - | - | - |
20CrMnTi | - | - | SMK22 | - | - | - |
30CrMnTi | - | 30MnCrTi4 | - | - | - | - |
20CrNi | 3120 | 20NiCr6 | - | 20NC6 | 637A16 637M17 | - |
40CrNi | 3140 | 46NiCr6 | SNCl | 35NC6 | 640A35 640M40 | - |
45CrNi | 3145 | 45NiCr6 | - | - | - | - |
50CrNi | 3150 | - | - | - | - | - |
12CrNi2 | 3115 | 14NiCrlO | SNC21 | IONCll 14NC11 | - | - |
12CrNi3 | 3310 | 13NiCrl2 | SNC22 | 10NC12 14NC12 | 655A12 655M13 | - |
20CrNi3 | - | 22NiCrl4 | - | 20NC11 | - | - |
30CrNi3 | - | 28NiCrlO 31NiCrl4 | SNC2 | 30NC11 30NC12 | - | - |
37CrNi3 | - | 35NiCrl8 | SNC3 | 35NC15 | - | - |
12Cr2Ni4 | E3310 | 14NiCrl8 | - | 12NC15 | - | - |
20Cr2Ni4 | E3316 | 22NiCrl4 | - | 20NC14 | 659A15 659M15 | - |
20CrNiMo | 8620 8720 | 20NiCrMo2 21NiCrMo2 | - | 20NCD2 | 805A20 805M20 | - |
40CrNiMoA | 4340 9840 | 36NiCrMo4 40NiCrMo6 | SNCM8 | 35NCD5 40NCD3 | 817M40 816M40 | - |
45CrNiMoVA | 4437 | - | SNCM9 | - | - | - |
18Cr2Ni4WA | ||||||
25Cr2Ni4WA |
