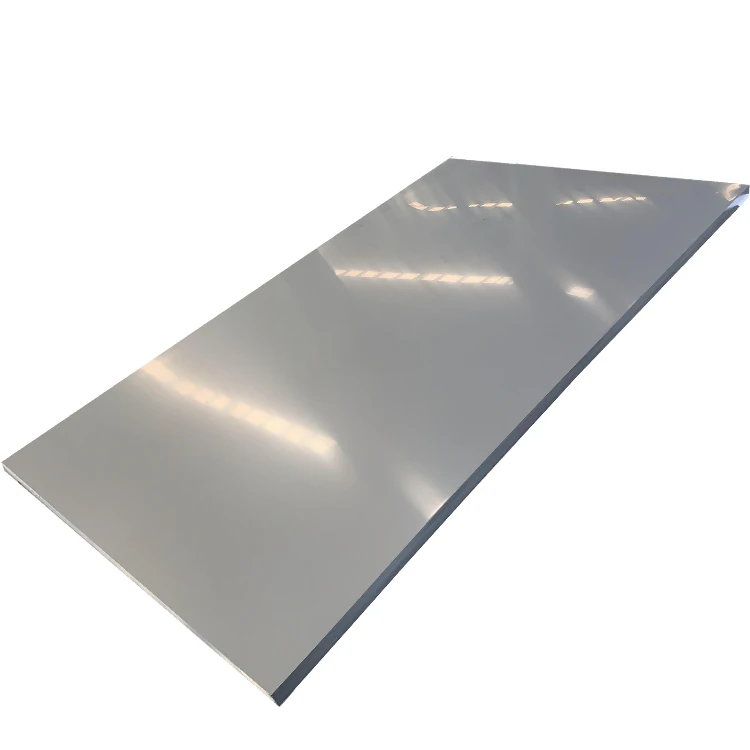

316L Stainless Steel Plate


316L stainless steel is an austenitic stainless steel metal alloy that contains nickel and molybdenum, making it corrosion resistant. 316L is a 316 low carbon grade. This grade is not affected by sensitization (grain boundary carbide precipitation). It is often used for large-gauge welded parts (approximately over 6mm). 316L stainless steel has higher creep, fracture stress and tensile strength than chromium nickel austenitic stainless steel at high temperature.


CERTIFICATE
ISO/EC 17021:2011
GB/T24001-2004
GB/T 24001-2016
Quality Management System Certificate

Description

316L Stainless Steel Plate Description

316L stainless steel is an austenitic stainless steel metal alloy that contains nickel and molybdenum, making it corrosion resistant. 316L is a 316 low carbon grade. This grade is not affected by sensitization (grain boundary carbide precipitation). It is often used for large-gauge welded parts (approximately over 6mm). 316L stainless steel has higher creep, fracture stress and tensile strength than chromium nickel austenitic stainless steel at high temperature.

Product Parameters

Product Name

316L Stainless Steel Plate

Thickness

0.2~200mm

Standard

ASTM A240, GB/T3280-2007, JIS4304-2005, ASTM A167, EN10088-2-2005, etc

Material

310S, 310, 309, 309S, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 304, 304L, 302, 301, 201, 202, 403, 405, 409, 409L, 410, 410S, 420, 430, 631, 904L, Duplex, etc

Surface

2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc

Width

1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Length

2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

Package

Standard export package, suit for all kinds of transport, or as required.

Payment term

TT, L/C, western Union, D/P

Main Features

1.Environmental protection: can effectively reduce environmental pollution.

2.Corrosion resistance: Strong anti-fouling, acid, corrosion, wear resistance, non-radioactive.

3.Surface cleanliness: The product surface is smooth and compact, not easy to be polluted by dust, and has good self-cleanliness.

4.Easy Maintenance: A slight loss is easy to repair.

Application

Stainless steel plate applies to construction field, ships building industry, petroleum, chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger, machinery and hardware fields.Stainless steel plate can be made according to the customers requirements.、

Product Specifications

Type

Thickness(mm)

Width(mm)

1219

1500

1800

2000

Cold Rolled

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1.2

1.5

1.8

2.0

2.5

3.0

4.0

5.0

6.0

Hot Rolled

4.0

5.0

6.0

8.0

10.0

12.0

14.0

16.0

Or according to the size requested by the customer



No China Japan America Korea Germany India Australia Taiwan, China
  GB JIS ASTM UNS KS DIN BIS AS CNS
Austenitic Stainless Steel
1 12Cr17Mn6Ni5N SUS201 201 S20100 STS201 1.4372 10Cr17Mn6Ni4N20 201-2 201
2 12Cr18Mn9Ni5N SUS202 202 S20200 STS202 1.4373 - - 202
3 12Cr17Ni7 SUS301 301 S20200 STS301 1.4319 10Cr17Ni7 301 301
4 06Cr19Ni10 SUS304 304 S30400 STS304 1.4301 07Cr18Ni9 304 304
5 022Cr19Ni10 SUS304L 304L S30403 STS304L 1.4306 02Cr18Ni11 304L 304L
6 06Cr19Ni10N SUS304N1 304N S30451 STS304N1 1.4315 - 304N1 304N1
7 06Cr19Ni9NbN SUS304N2 XM21 S30452 STS304N2 - - 304N2 304N2
8 022Cr19Ni10N SUS304LN 304LN S30453 STS304LN - - 304LN 304LN
9 10Cr18Ni12 SUS305 305 S30500 STS305 1.4303 - 305 305
10 06Cr23Ni13 SUS309S 309S S30908 STS309S 1.4833 - 309S 309S
11 06Cr25Ni20 SUS310S 310S S31008 STS310S 1.4845 - 310S 310S
12 06Cr17Ni12Mo2 SUS316 316 S31600 STS316 1.4401 04Cr17Ni12Mo2 316 316
13 06Cr17Ni12Mo2Ti SUS316Ti 316Ti S31635 - 1.4571 04Cr17Ni12MoTi20 316Ti 316Ti
14 022Cr17Ni12Mo2 SUS316L 316L S31603 STS316L 1.4404 ~02Cr17Ni12Mo2 316L 316L
15 06Cr17Ni12Mo2N SUS316N 316N S31651 STS316N - - 316N 316N
16 022Cr17Ni13Mo2N SUS316LN 316LN S31653 STS316LN 1.4429 - 316LN 316LN
17 06Cr18Ni12Mo2Cu2 SUS316J1 - - STS316J1 - - 316J1 316J1
18 022Cr18Ni14Mo2Cu2 SUS316J1L - - STS316J1L - - - 316J1L
19 06Cr19Ni13Mo3 SUS317 317 S31700 STS317 - - 317 317
20 022Cr19Ni13Mo3 SUS317L 317L S31703 STS317L 1.4438 - 317L 317L
21 06Cr18Ni11Ti S SUS321 321 S32100 STS321 1.4541 04Cr18Ni10Ti20 321 321
22 06Cr18Ni11Nb SUS347 347 S34700 STS347 1.4550 04Cr18Ni10Nb40 347 347
Duplex Stainless Steel
1 - SUS329J1 329 S32900 STS329J1 1.4477 - 329J1 -
2 022Cr23Ni5Mo3N - S32205 F60 - 1.4462 - 2205 2205
3 022Cr25Ni7Mo4N - S32750 F53 - 1.4410 - 2507 2507
Ferritic Stainless Steels
1 06Crl3Al SUS405 405 S40500 STS405 1.4002 04Cr13 405 405
2 022Cr11Ti SUH409 409 S40900 STS409 1.4512 - 409L 409L
3 022Cr12 SUS410L - - STS410L - - 410L 410L
4 10Cr17 SUS430 430 S43000 STS430 1.4016 05Cr17 430 430
5 10Cr17Mo SUS434 434 S43400 STS434 1.4113 - 434 434
6 022Cr18NbTi - - S43940 - 1.4509 - 439 439
7 019Cr19Mo2NbTi SUS444 444 S44400 STS444 1.4521 - 444 444
Martensitic Stainless Steel
1 12Cr12 SUS403 403 S40300 STS403 - - 403 403
2 12Cr13 SUS410 410 S41000 STS410 1.4006 12Cr13 410 410
3 20Cr13 SUS420J1 410 S42000 STS420J1 1.4021 20Cr13 420 420J1
4 30Cr13 SUS420J2 - - STS420J2 1.4028 30 Cr13 420J2 420J2
5 68Cr17 SUS440A 440A S44002 STS440A - - 440A 440A

Product Details

Product Production

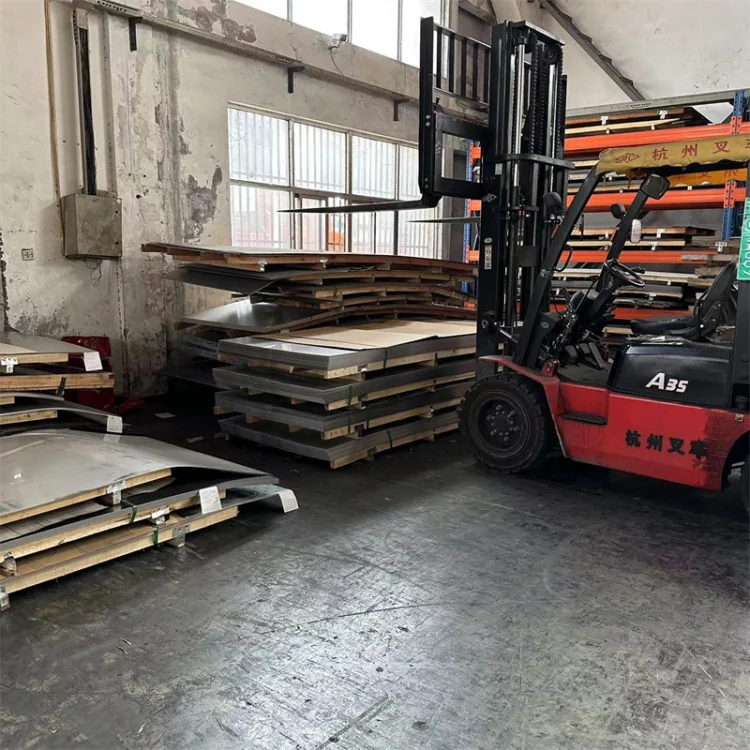

Product Warehouse

11

11

11

11

11

11

Applications
Stainless Steel sheet and Coil is widely used in fields such as tableware, household appliances, machinery manufacturing, building decoration, coal, petrochemical, etc. due to its excellent corrosion resistance, heat resistance, and low temperature resistance.

11

Project Cases

11

Additional Processing Technology

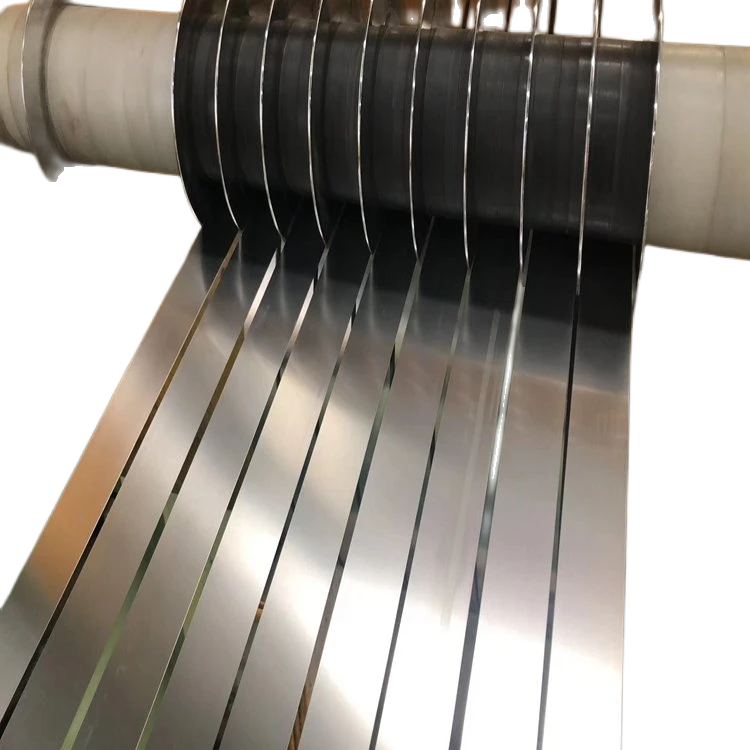

Our stainless steel coils can provide processing techniques such as lamination, cutting, welding, pressing, and surface treatment.

11

Product Packaging

11

Product Transportation

No China Japan America Korea Germany India Australia Taiwan, China
  GB JIS ASTM UNS KS DIN BIS AS CNS
Austenitic Stainless Steel
1 12Cr17Mn6Ni5N SUS201 201 S20100 STS201 1.4372 10Cr17Mn6Ni4N20 201-2 201
2 12Cr18Mn9Ni5N SUS202 202 S20200 STS202 1.4373 - - 202
3 12Cr17Ni7 SUS301 301 S20200 STS301 1.4319 10Cr17Ni7 301 301
4 06Cr19Ni10 SUS304 304 S30400 STS304 1.4301 07Cr18Ni9 304 304
5 022Cr19Ni10 SUS304L 304L S30403 STS304L 1.4306 02Cr18Ni11 304L 304L
6 06Cr19Ni10N SUS304N1 304N S30451 STS304N1 1.4315 - 304N1 304N1
7 06Cr19Ni9NbN SUS304N2 XM21 S30452 STS304N2 - - 304N2 304N2
8 022Cr19Ni10N SUS304LN 304LN S30453 STS304LN - - 304LN 304LN
9 10Cr18Ni12 SUS305 305 S30500 STS305 1.4303 - 305 305
10 06Cr23Ni13 SUS309S 309S S30908 STS309S 1.4833 - 309S 309S
11 06Cr25Ni20 SUS310S 310S S31008 STS310S 1.4845 - 310S 310S
12 06Cr17Ni12Mo2 SUS316 316 S31600 STS316 1.4401 04Cr17Ni12Mo2 316 316
13 06Cr17Ni12Mo2Ti SUS316Ti 316Ti S31635 - 1.4571 04Cr17Ni12MoTi20 316Ti 316Ti
14 022Cr17Ni12Mo2 SUS316L 316L S31603 STS316L 1.4404 ~02Cr17Ni12Mo2 316L 316L
15 06Cr17Ni12Mo2N SUS316N 316N S31651 STS316N - - 316N 316N
16 022Cr17Ni13Mo2N SUS316LN 316LN S31653 STS316LN 1.4429 - 316LN 316LN
17 06Cr18Ni12Mo2Cu2 SUS316J1 - - STS316J1 - - 316J1 316J1
18 022Cr18Ni14Mo2Cu2 SUS316J1L - - STS316J1L - - - 316J1L
19 06Cr19Ni13Mo3 SUS317 317 S31700 STS317 - - 317 317
20 022Cr19Ni13Mo3 SUS317L 317L S31703 STS317L 1.4438 - 317L 317L
21 06Cr18Ni11Ti S SUS321 321 S32100 STS321 1.4541 04Cr18Ni10Ti20 321 321
22 06Cr18Ni11Nb SUS347 347 S34700 STS347 1.4550 04Cr18Ni10Nb40 347 347
Duplex Stainless Steel
1 - SUS329J1 329 S32900 STS329J1 1.4477 - 329J1 -
2 022Cr23Ni5Mo3N - S32205 F60 - 1.4462 - 2205 2205
3 022Cr25Ni7Mo4N - S32750 F53 - 1.4410 - 2507 2507
Ferritic Stainless Steels
1 06Crl3Al SUS405 405 S40500 STS405 1.4002 04Cr13 405 405
2 022Cr11Ti SUH409 409 S40900 STS409 1.4512 - 409L 409L
3 022Cr12 SUS410L - - STS410L - - 410L 410L
4 10Cr17 SUS430 430 S43000 STS430 1.4016 05Cr17 430 430
5 10Cr17Mo SUS434 434 S43400 STS434 1.4113 - 434 434
6 022Cr18NbTi - - S43940 - 1.4509 - 439 439
7 019Cr19Mo2NbTi SUS444 444 S44400 STS444 1.4521 - 444 444
Martensitic Stainless Steel
1 12Cr12 SUS403 403 S40300 STS403 - - 403 403
2 12Cr13 SUS410 410 S41000 STS410 1.4006 12Cr13 410 410
3 20Cr13 SUS420J1 410 S42000 STS420J1 1.4021 20Cr13 420 420J1
4 30Cr13 SUS420J2 - - STS420J2 1.4028 30 Cr13 420J2 420J2
5 68Cr17 SUS440A 440A S44002 STS440A - - 440A 440A
